Product Details

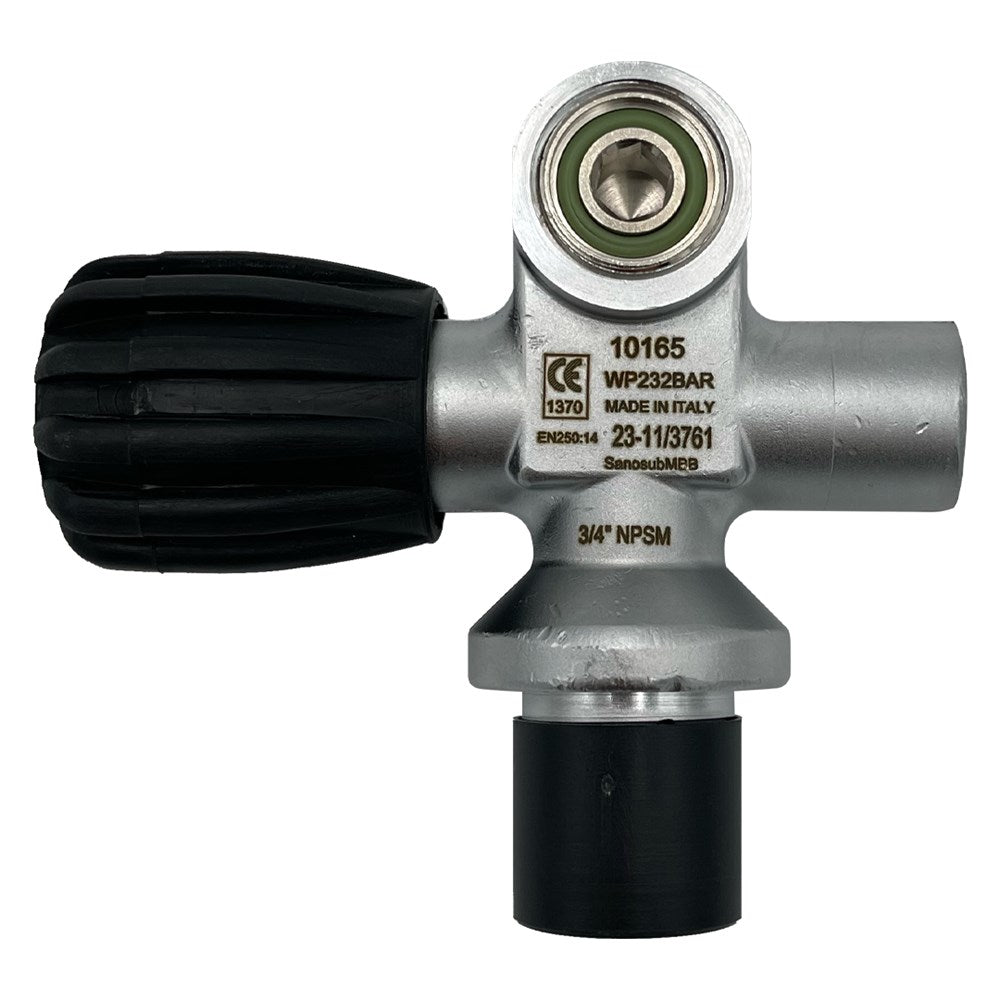

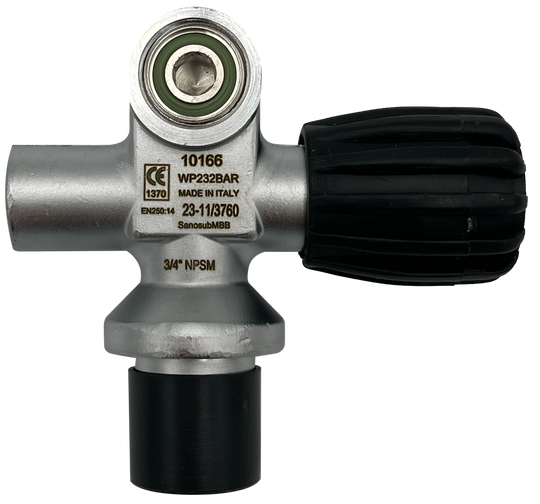

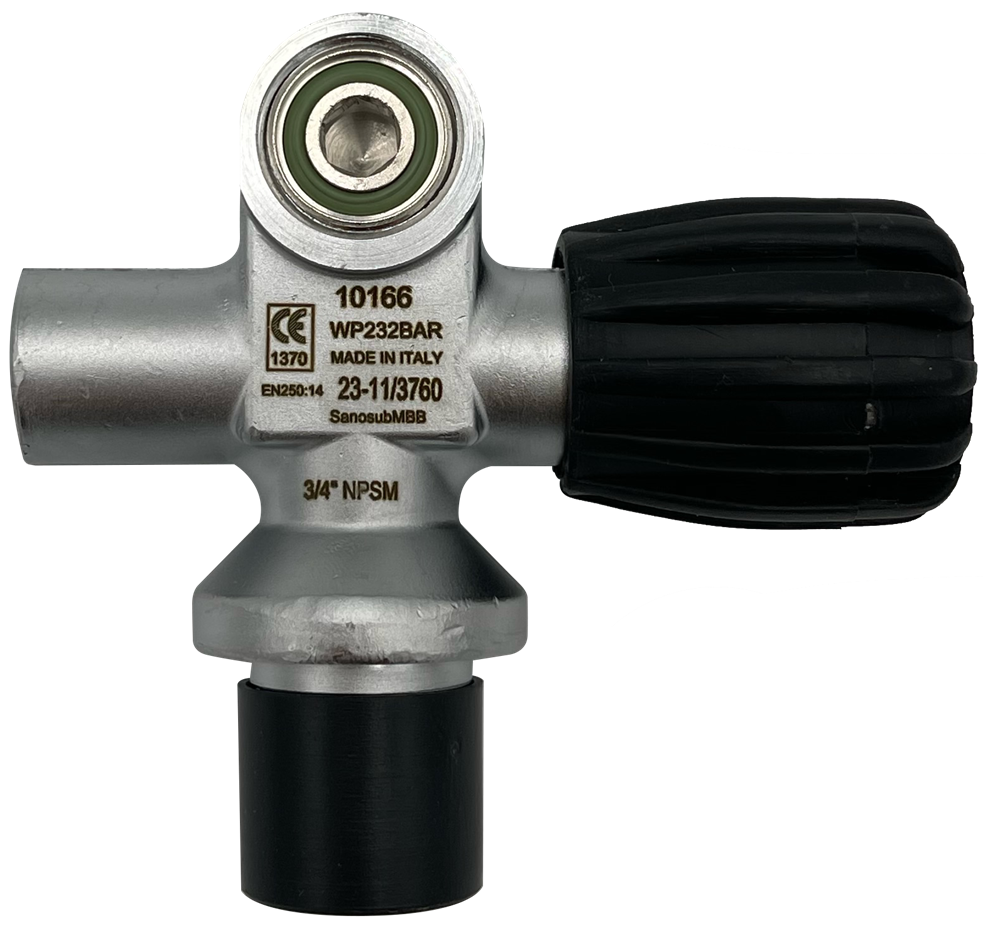

SOS Manifold Cylinder Valves are individual left and right valves designed to accept an isolation bar, which is sold separately. This lets a technician assemble or service a twin-cylinder manifold using the pressure and hand-wheel orientation required for the system.

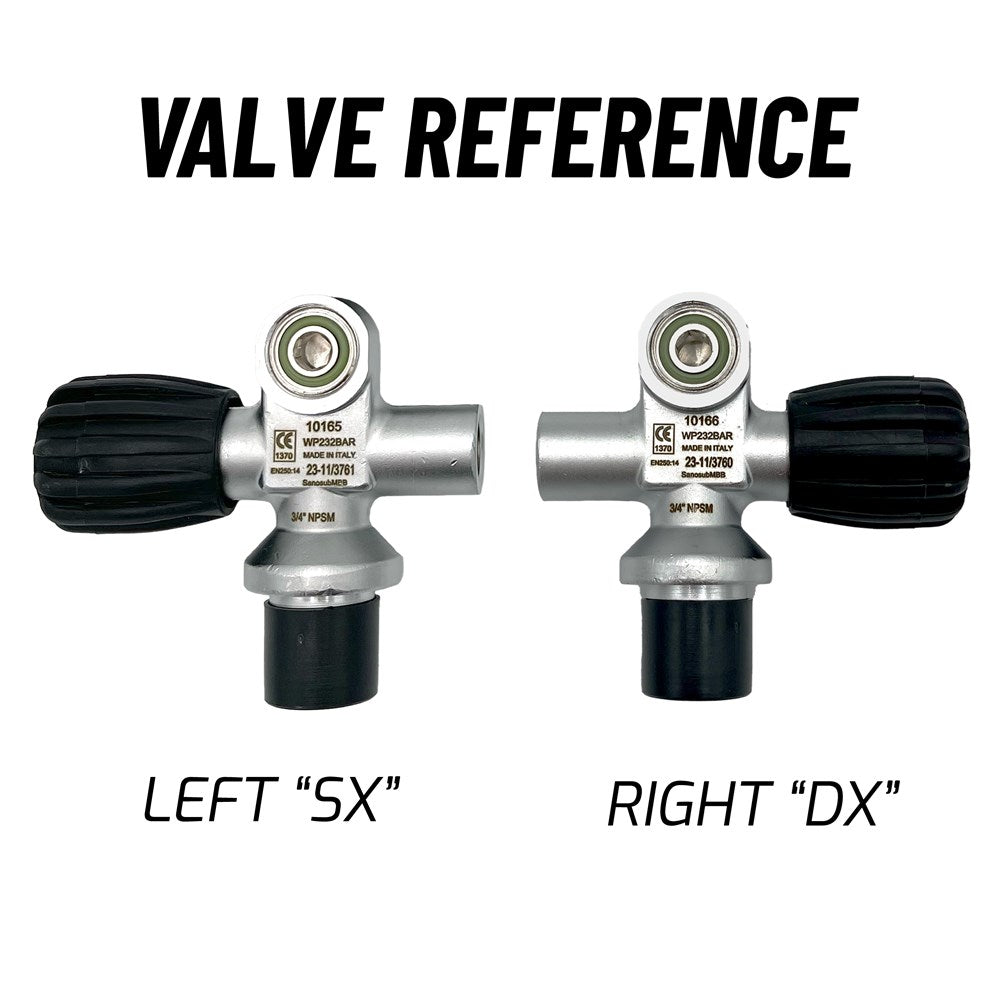

The range includes 232 bar DK valves with removable inserts for DIN or yoke use, plus 300 bar DIN versions. Left SX and right DX refer to the hand-wheel side when looking at the valve. Match the selected valve to the isolation bar and cylinder specification before installation.
Specifications
- Brand
- Cressi
- Supplier line
- SOS / San-o-Sub
- Type
- Manifold cylinder valve
- Isolation bar
- Sold separately
- Pressure options
- 232 bar DK; 300 bar DIN
- Orientations
- Left SX; Right DX
- DK connection
- DIN or yoke with removable insert
