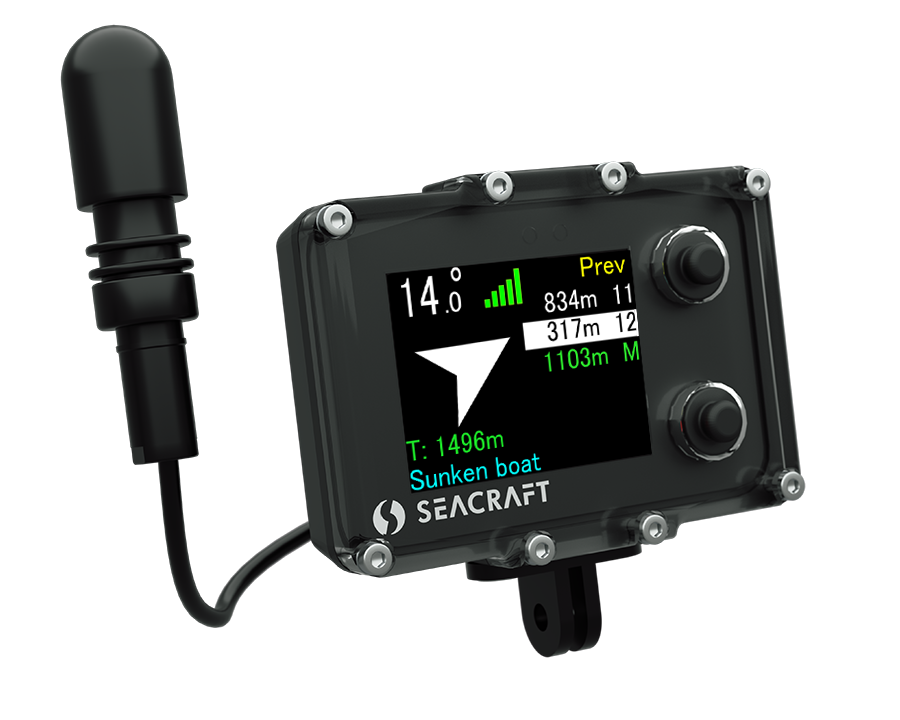

Seacraft ENC3-PRO electronic navigation console

Seacraft

Available to Order

Seacraft Electronic Navigation Console ENC3-PRO — Full Set

SKUFE1114

Our Price
AUD $6,899

A complete ENC3-PRO navigation package with multipoint route planning, external GPS position correction and DPV-specific mounting for FUTURE or GHOST.

  • Australian Seacraft Premium Dealer
  • Full Set matched to your DPV
  • Technical setup support

Product overview

About this product

The Seacraft ENC3-PRO Full Set brings planned-route navigation and GPS-assisted position correction to compatible FUTURE and GHOST DPVs. It combines the compact underwater console with an external GPS set, speed sensor and the mounting hardware for the selected DPV platform.

Unlike ENC3’s direct point-and-return approach, ENC3-PRO can follow a planned route of up to 29 waypoints, work with an MGRS target and update the calculated underwater position when external GPS data becomes available. It also records route and dive data for later review through the supported Seacraft software workflow.

Choose FUTURE or GHOST compatibility so the set is supplied with the appropriate bracket. The external GPS buoy system is rated to 150 m; the console alone is rated to 300 m.

Features

Key features

Multipoint route planning

Prepare routes of up to 29 waypoints for structured underwater navigation, rather than relying on a single target alone.

GPS-assisted position correction

The external GPS set can update the calculated position when GPS data is available, reducing accumulated dead-reckoning error on demanding routes.

Live navigation data

Read direction, depth, current speed, travelled distance, target data, ETA and dive time from the compact console.

Complete DPV integration

Each variant combines the console, GPS set, speed sensor, buoyancy cover and compatibility-specific mounting hardware.

Highlights

Technical highlights

Why choose ENC3-PRO?

Choose ENC3-PRO when the dive plan needs multipoint routes, MGRS target support or external GPS position updates. ENC3 remains the simpler choice for direct point-and-return guidance and route logging.

Plan, navigate and review

Routes and target points can be prepared through the supported Seacraft software workflow, while recorded route and dive information can be transferred for later review.

Built for the selected platform

FUTURE and GHOST sets use different mounting brackets. Selecting the correct variant prevents a generic package from being presented as universally interchangeable.

Depth boundary made clear

The console alone is rated to 300 m. When the external GPS buoy system is used, the system limit is 150 m. Plan to the limit of the complete setup in use.

Specifications

ENC3-PRO specifications

Navigation
Dead reckoning; up to 29 route points; one MGRS target; GPS position correction
Displayed data
Heading, depth, speed, distance, target direction/distance, ETA, dive time
Sensors
3D magnetometer, gyroscope, accelerometer, pressure, temperature, external log
Satellite systems
GPS, Beidou, GLONASS; Galileo where supported by the GPS system
Connectivity
Bluetooth 4.2 and USB
Route storage
Up to 50 recorded routes
Battery
Built-in Li-ion, 3.7 V / 5 Wh; approximately 16–22 hours
Charging
5 V supply; under 2 hours
Size and weight
95 × 71 × 35 mm; 290 g; approximately -90 g in water
Maximum depth
150 m with GPS buoy; console-only 300 m

Specifications describe the navigation console and supplied Full Set. Compatibility-specific hardware varies by selected variant. Battery endurance depends on settings, connectivity and use.

Fulfilment

Shipping and availability

Special order. Usually 2–3 weeks.

Contact us before ordering if you need the system by a specific date.

Included

What the Full Set includes

Every variant includes the ENC3-PRO console set, buoyancy foam cover, speed sensor D, external GPS set with type-B buoy and 10 m cable, two cable-winding holders, and a GPS float holder. The FUTURE variant includes the 160 mm FUTURE mounting bracket. The GHOST variant includes the 208 mm GHOST mounting bracket. Confirm your DPV platform before ordering.

ENC3-PRO is the better fit when the navigation plan depends on a prepared multipoint route, MGRS target handling or periodic GPS-assisted position correction. Select the variant for your Seacraft platform, and contact us if you want to confirm the mounting and planned configuration before ordering.

Product help

Frequently asked questions

What is the practical difference between ENC3 and ENC3-PRO?

Both provide underwater navigation data and route logging. ENC3-PRO adds planned routes of up to 29 waypoints, MGRS target support and an external GPS system that can correct the calculated position when GPS data is available. Its Full Set also includes the GPS buoy, cable and handling hardware.

Which DPVs does this Full Set support?

Current Full Set order codes are available for Seacraft FUTURE and GHOST platforms. Select the matching compatibility option so the correct mounting bracket is supplied.

What is included?

The set includes the ENC3-PRO console set, buoyancy cover, speed sensor, compatibility-specific bracket, external GPS set with type-B buoy and 10 m cable, two cable-winding holders, and a GPS float holder.

Does it need power from the DPV?

No. The console has a built-in rechargeable 3.7 V, 5 Wh battery. Charge it from a suitable 5 V source in accordance with the Seacraft instructions.

What depth is the system rated for?

The external GPS buoy system is rated to 150 m. The console by itself is rated to 300 m. Use the lower limit that applies to the complete configuration being dived.

How long does special order take?

Special-order lead time is usually 2–3 weeks. Contact us before ordering if you have a fixed departure or project date.
