Halcyon Symbios Tank Pod

Halcyon

Available to Order

Halcyon Symbios Tank Pod

RRP
AUD $710
Our Price
AUD $649
You Save
AUD $61 (9%)

The official Symbios pressure transmitter adds live cylinder data and an optional calibrated trim reading to a compatible Halcyon Handset or HUD.

  • Genuine Australian supplied Halcyon product
  • Regulator fitting, pairing and trim-calibration advice
  • Local after-sales and manufacturer-warranty support
← Dive Computers
Product Overview

About This Product

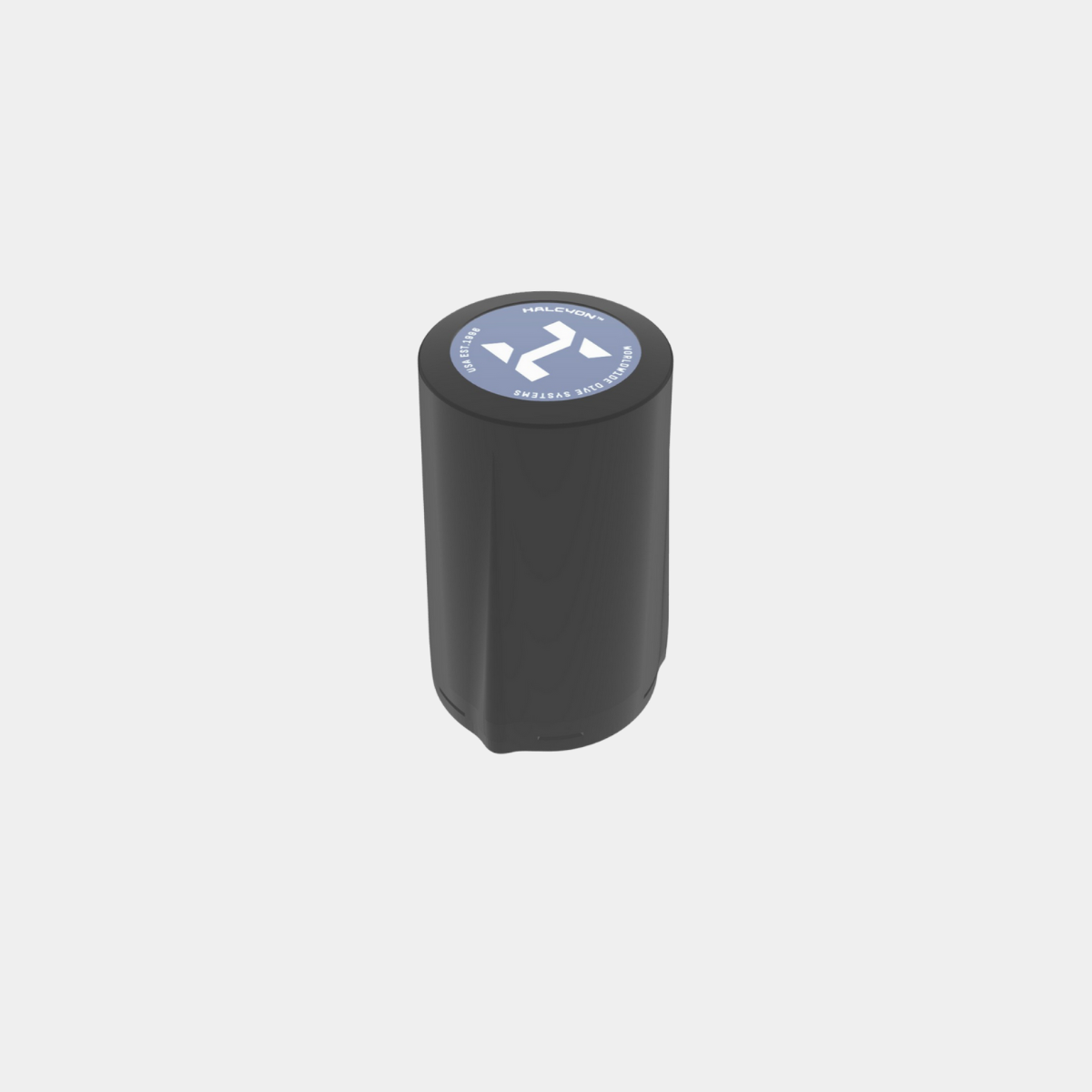

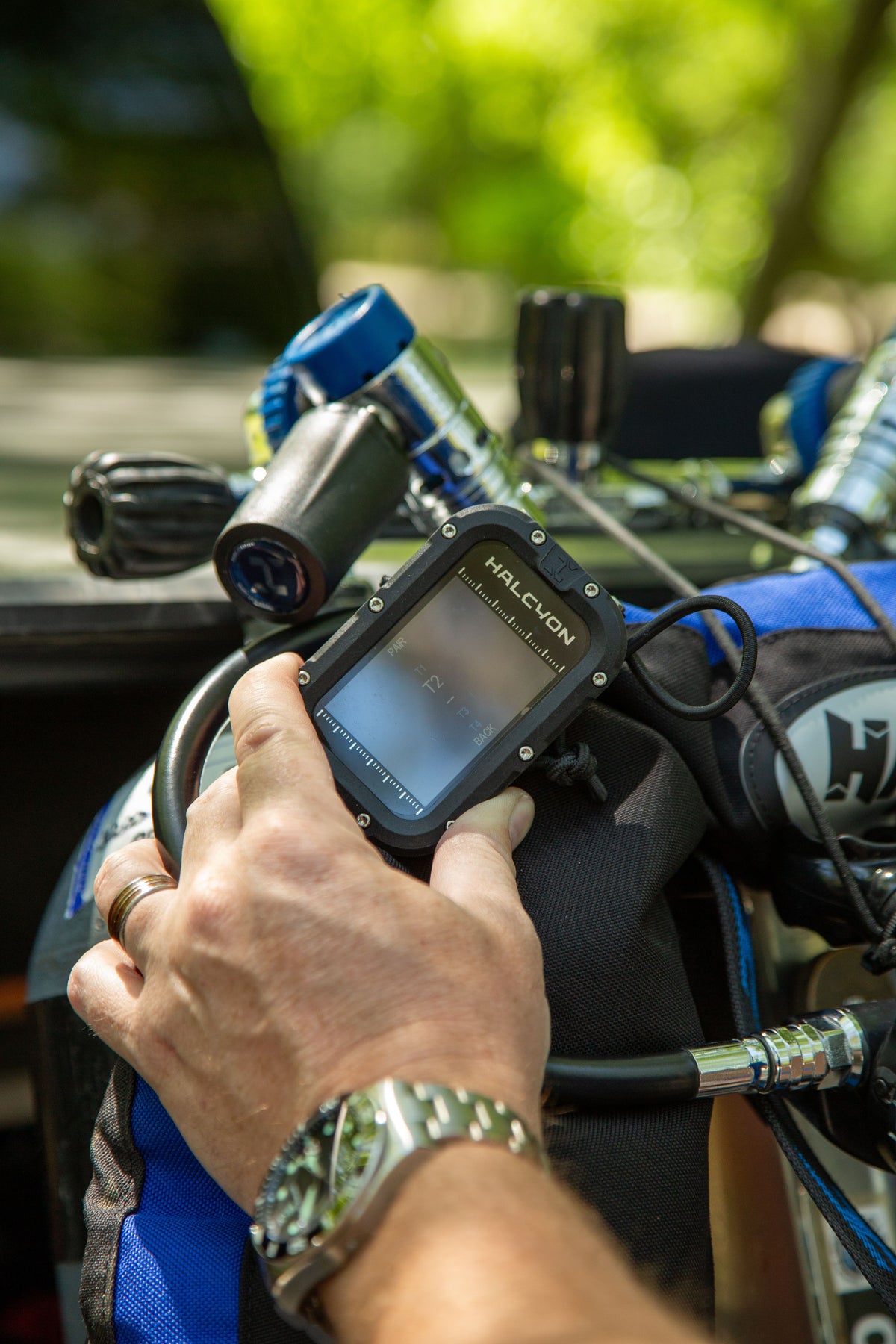

The Halcyon Symbios Tank Pod adds two useful data streams to a compatible Symbios Handset or HUD: live cylinder pressure and, when enabled and calibrated, the diver's trim angle. That makes it more than a conventional pressure transmitter, particularly for sidemount, training and technical setups where balance and cylinder management matter.

It remains a system component rather than an independent instrument. The Pod needs a suitable first-stage high-pressure port, correct installation, pairing with the selected gas or pressure entry and recalibration whenever its orientation on the cylinder changes. A backup pressure gauge is also part of the installation guidance in the official manual.

Features

Key capabilities

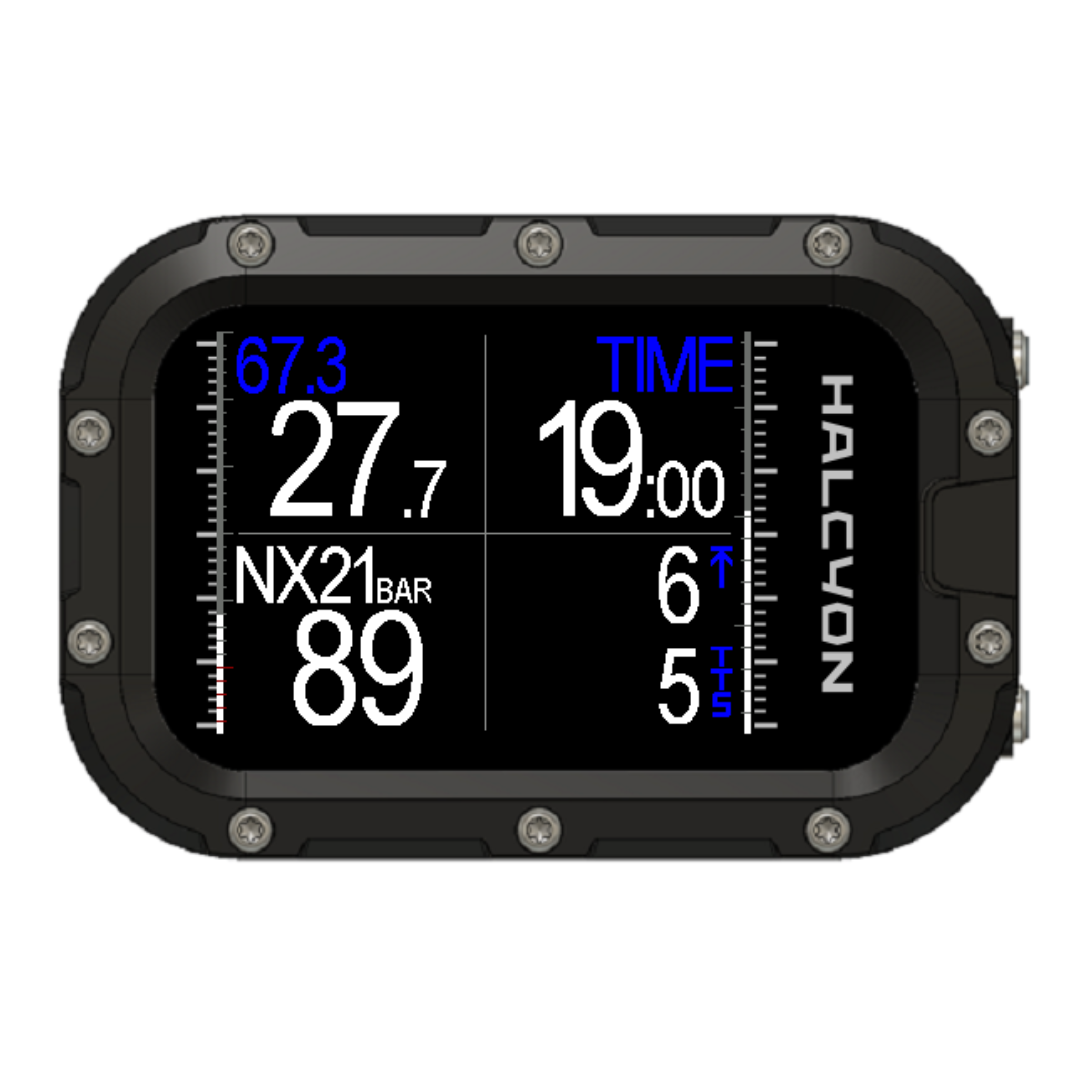

Wireless cylinder pressure

Send pressure data to a paired compatible Symbios Handset or HUD.

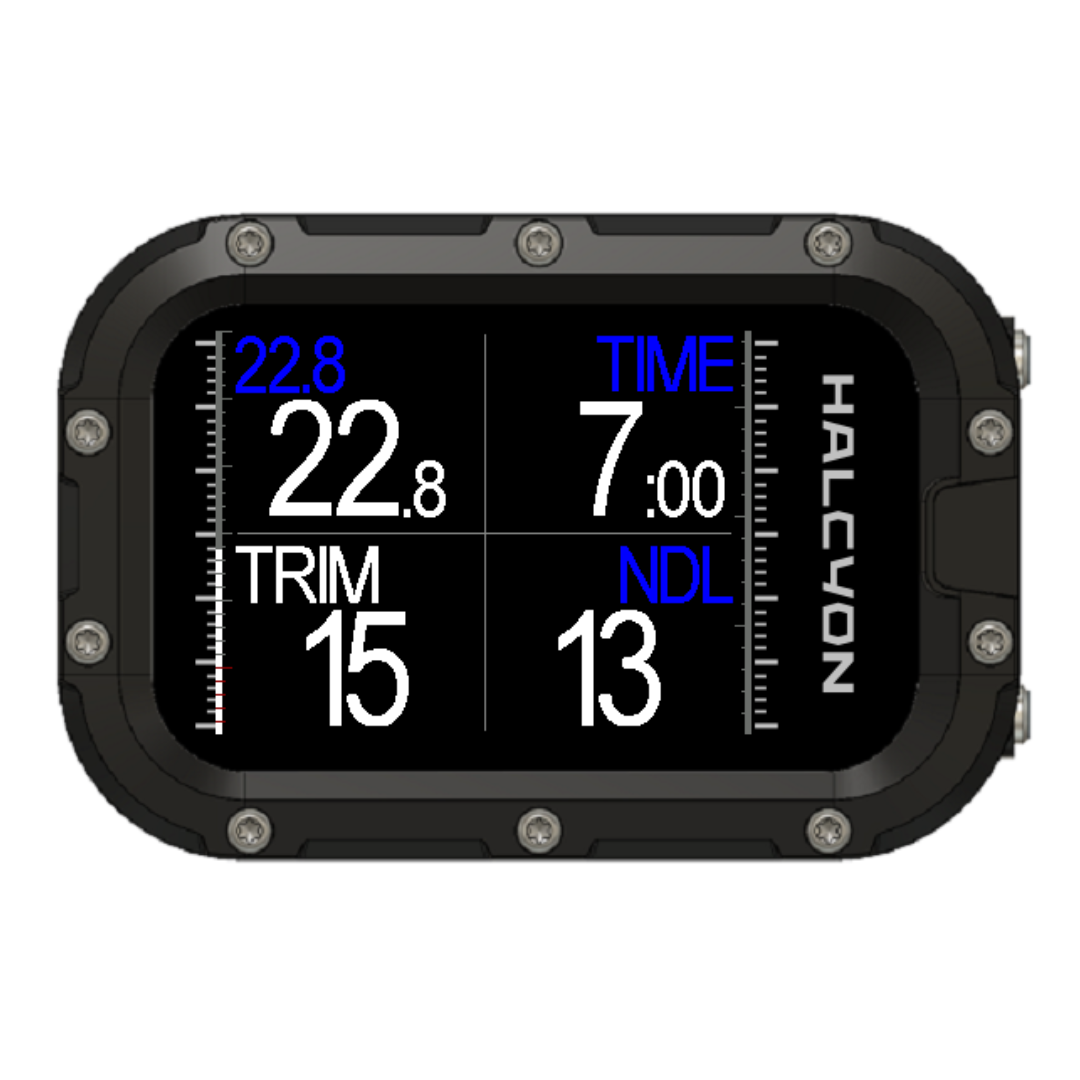

Built-in trim sensor

A 3-axis accelerometer can provide real-time trim angle after the required calibration.

Sidemount and multi-cylinder use

Pair Pods to gas or independent pressure entries according to the selected Symbios computer mode.

Replaceable CR123 battery

User-replaceable lithium power avoids making the transmitter a sealed charging device.

Highlights

Product highlights

300 bar working pressure

The official manual rates the Pod for cylinder pressures up to 300 bar.

Optional pressure-only mode

Battery orientation can disable position transmission when trim data is not needed.

Calibrated position feedback

The trim function reports angle from horizontal after horizontal and vertical calibration.

Compatible Symbios pairing

Pair the Pod with a gas entry or one of the independent T1-T4 pressure positions.

Specifications

Technical specifications

Global Part Number
13.001.005
Compatible Displays
Halcyon Symbios Handset and HUD
Rated Working Pressure
300 bar / 4351 psi
Maximum Operating Depth
100 m / 328 ft
Connection
7/16-20 UNF first-stage high-pressure port
Battery
User-replaceable CR123 lithium
Trim Sensor
3-axis accelerometer; 1-degree resolution; calibration required
Transmission Interval
Pressure about every 4 seconds; position every 1 second
Operating Temperature
0 to 40 degrees C
Housing
Glass-fibre-reinforced polyamide

The Tank Pod requires a compatible Symbios computer and a suitable first-stage high-pressure port. Install it correctly, pair it before use, retain a backup SPG and recalibrate the trim sensor whenever its orientation changes.

Shipping

Shipping & Availability

Orders are typically dispatched within 2-3 business days.

We ship genuine Halcyon products Australia-wide from our Melbourne dive shop. If an item is temporarily unavailable, we'll contact you with the latest estimated dispatch timeframe before processing your order.
Included

What's included

Symbios Tank Pod in the carton box. No hard case, tools or spare components are included by inference.

Learn More

A Tank Pod purchase should start with the receiving computer, first-stage port layout and number of cylinders to monitor. The trim feature adds real value when it will be calibrated and used deliberately; otherwise the Pod can operate as a pressure transmitter only.

Product Help

Frequently asked questions

Does the Tank Pod work by itself?

No. It needs a compatible Halcyon Symbios Handset or HUD to display pressure or trim data.

What does it add besides tank pressure?

It can transmit the diver's trim angle using its built-in 3-axis accelerometer after calibration.

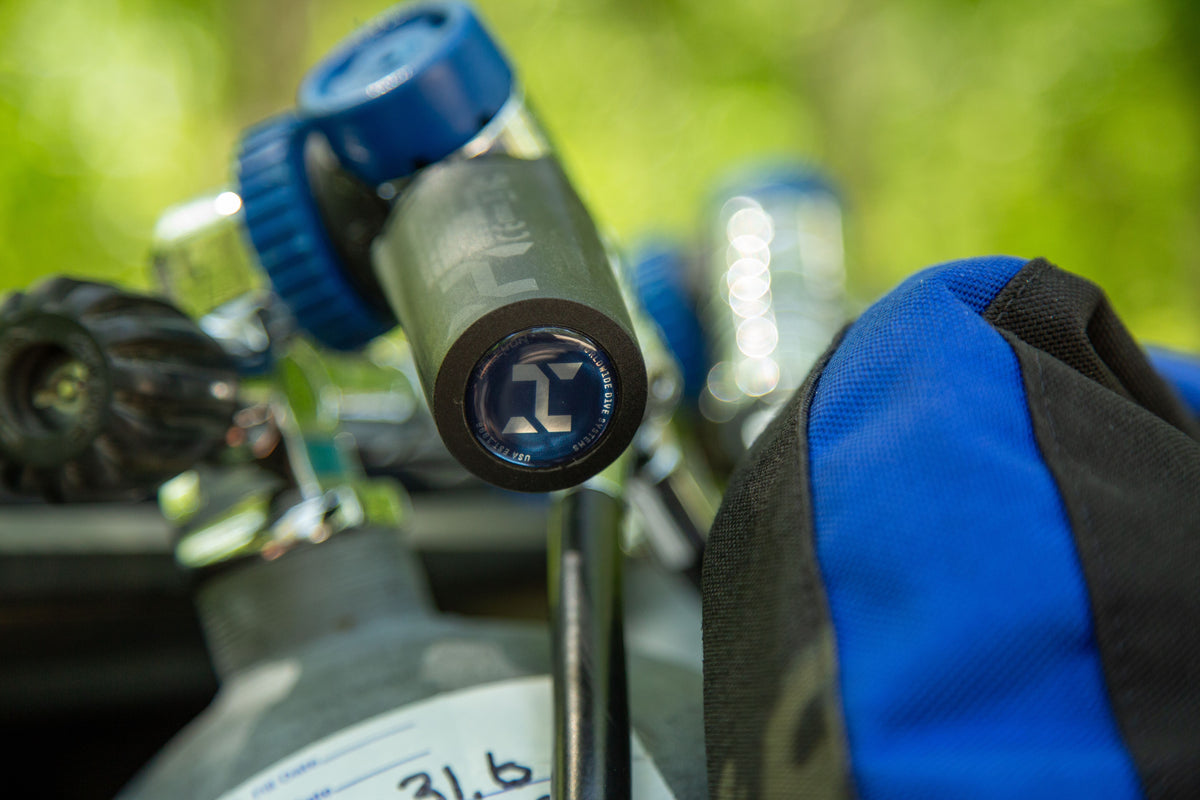

Where is it installed?

In a suitable 7/16-20 UNF high-pressure port on the regulator first stage. Halcyon recommends retaining a backup SPG.

Does the trim sensor need calibration?

Yes. Calibrate it after pairing and whenever the Pod's orientation relative to the cylinder changes.

Which battery does it use?

A user-replaceable CR123 lithium battery.

Can trim transmission be switched off?

Yes. The official manual explains how battery orientation enables or disables position transmission while retaining pressure transmission.

Expert guidance

Adding pressure or trim data?

Tell our dive team which Symbios computer, regulator and cylinder configuration you use. We can help check port layout, Pod quantity and the pairing plan before you order.

Ask a dive professional
