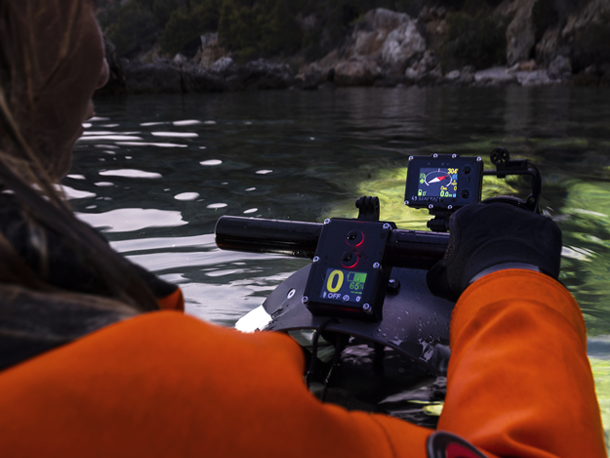

Seacraft ENC3 navigation console mounted on a DPV

Seacraft

Available to Order

Seacraft Electronic Navigation Console ENC3 — Full Set

SKUOE1111

Our Price
AUD $3,999

A complete ENC3 package for direct target guidance, return navigation and route logging, with the sensor and mounting hardware matched to your DPV.

  • Australian Seacraft Premium Dealer
  • Full Set matched to your DPV
  • Technical setup support

Product overview

About this product

The Seacraft ENC3 Full Set adds a compact underwater navigation display to GO!, FUTURE, GHOST or another suitable DPV. It combines the ENC3 console with the speed sensor, buoyancy cover and mounting hardware for the selected setup.

ENC3 uses dead reckoning to show heading, depth, speed, travelled distance and guidance to a saved target. It can record routes, mark points and guide the diver back by direction and distance, with up to 50 recorded routes stored for review.

Choose the correct DPV Compatibility variant. The GO!, FUTURE and GHOST sets use platform-specific hardware; the Other DPVs set uses its own vertical speed sensor and universal mounting arrangement.

Features

Key features

Direct target guidance

Save a target and follow direction and distance information underwater, including a practical return-to-point workflow.

Essential dive data together

View heading, depth, speed, travelled distance, target data, ETA and dive time on one compact display.

Route logging and saved points

Record routes, mark points during a dive and retain up to 50 routes for later review.

Four matched Full Sets

Select GO!, FUTURE, GHOST or Other DPVs so the package uses the applicable mount and speed-sensor arrangement.

Highlights

Technical highlights

Focused navigation without the GPS buoy system

ENC3 is designed for direct point-and-return guidance and route logging. If the plan needs multipoint routes, MGRS targeting or external GPS position correction, choose ENC3-PRO.

Independent rechargeable power

The console uses its own rechargeable 3.7 V, 5 Wh battery and does not depend on the DPV traction battery for normal operation.

Sensor-supported dead reckoning

The console combines motion, magnetic, pressure and temperature sensing with an external speed log to calculate and display useful underwater navigation data.

Correct hardware for the installation

Seacraft-specific and universal packages are kept as explicit variants so customers can choose the mount and sensor arrangement intended for the DPV.

Specifications

ENC3 specifications

Navigation
Dead reckoning; one target point; return guidance by direction and distance
Displayed data
Heading, depth, speed, distance, target direction/distance, ETA, dive time
Sensors
3D magnetometer, gyroscope, accelerometer, pressure, temperature, external log
Satellite systems
GPS, Beidou and GLONASS
Connectivity
Bluetooth 4.2 and USB
Route storage
Up to 50 recorded routes
Battery
Built-in Li-ion, 3.7 V / 5 Wh; up to 22 hours
Charging
5 V DC, up to 1 A; under 2 hours
Size and weight
95 × 71 × 30.6 mm; 290 g; approximately -90 g in water
Maximum depth
300 m; tested to 350 m

Specifications describe the ENC3 console. Full Set mounting and speed-sensor hardware changes with the selected DPV Compatibility variant. Battery endurance depends on settings, connectivity and use.

Fulfilment

Shipping and availability

Special order. Usually 2–3 weeks.

Contact us before ordering if you need the system by a specific date.

Included

What the Full Set includes

Every variant includes the ENC3 console and buoyancy foam cover. GO!, FUTURE and GHOST variants include speed sensor D and the applicable platform mount. The Other DPVs variant includes vertical speed sensor B and two universal mounting brackets. Package components are tied to the selected commercial SKU; confirm the intended DPV before ordering.

ENC3 is the focused choice for divers who want direct target guidance, return navigation and useful route records without the external GPS buoy architecture of ENC3-PRO. Select the compatibility package for your DPV and confirm any non-Seacraft installation before ordering.

Product help

Frequently asked questions

What is the difference between ENC3 and ENC3-PRO?

ENC3 supports one target point, return guidance and route logging. ENC3-PRO adds multipoint routes up to 29 waypoints, MGRS target support and an external GPS system for position correction when GPS data is available.

Which DPVs can use the ENC3 Full Set?

Current Full Set configurations cover Seacraft GO!, FUTURE and GHOST platforms, plus an Other DPVs package with a vertical speed sensor and universal mounting brackets. Compatibility still needs to be confirmed for the intended scooter.

What does Full Set include?

It includes the ENC3 console, buoyancy cover, a speed sensor and the mounting hardware defined for the selected compatibility variant. The exact sensor and bracket arrangement differs for Other DPVs.

Does ENC3 require power from the DPV?

No. ENC3 has a built-in rechargeable 3.7 V, 5 Wh battery and charges from a suitable 5 V DC source.

What navigation information does it show?

ENC3 can show heading, depth, current speed, travelled distance, direction and distance to a target, ETA and dive time, while also recording route data.

How long does special order take?

Special-order lead time is usually 2–3 weeks. Contact us before ordering if you have a fixed travel or project date.
