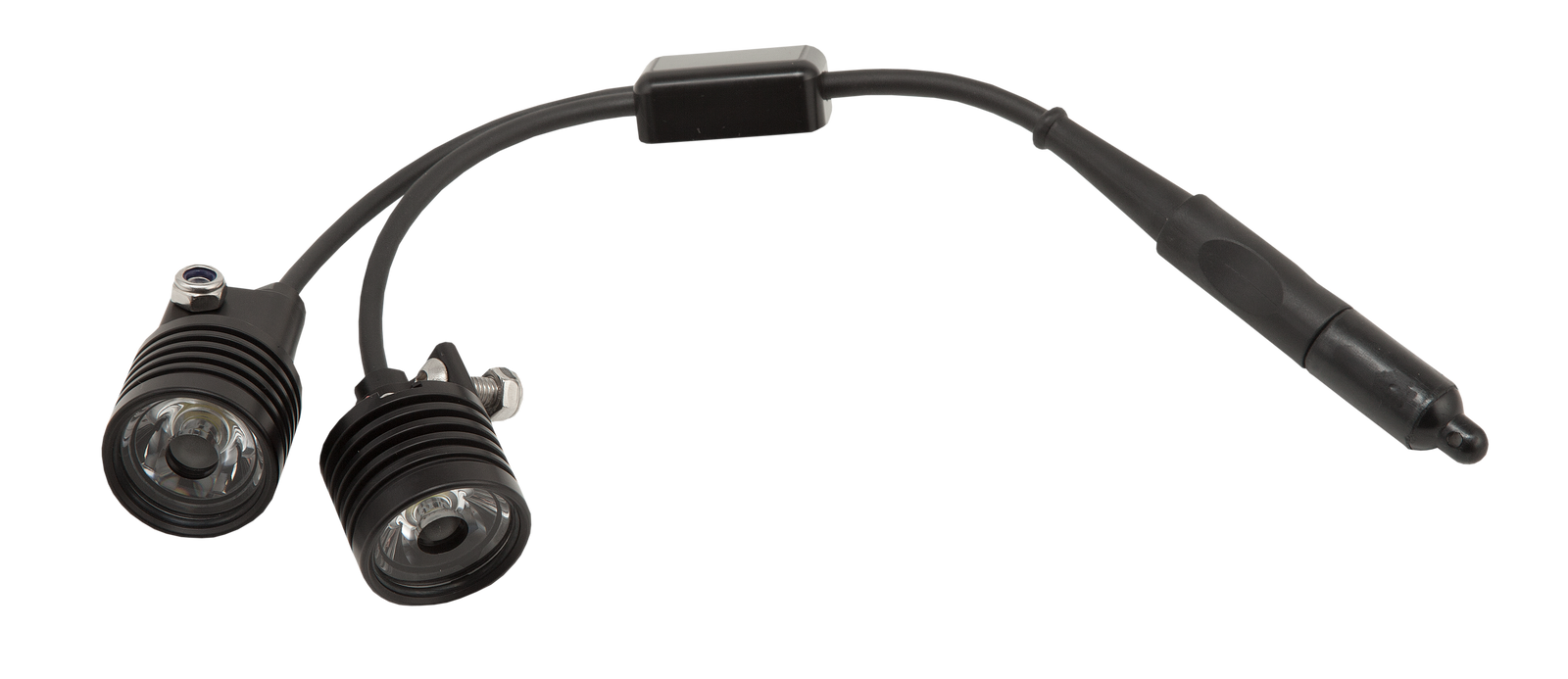

Seacraft SLS2 twin DPV light system with Y-shaped E/O cable

Seacraft

Available to Order

Seacraft Light System SLS2

SKUU1098

Our Price
AUD $1,299

A 7,200-lumen twin-light system powered and controlled through a compatible converter-equipped Seacraft DPV.

  • Australian Seacraft Premium Dealer
  • Compatibility checked before order
  • Technical installation support

Product overview

About this product

The Seacraft SLS2 adds a compact, DPV-powered twin-light system to a compatible converter-equipped Seacraft setup. Two 3,600-lumen light heads deliver 7,200 lumens total through focused 14° beams, with brightness controlled from the DPV display and individual magnetic slide switches on the lamps.

The two anodised-aluminium heads connect through a Y-shaped E/O cable and mount to the DPV with the supplied screws. SLS2 does not contain its own battery: it requires a compatible Seacraft DPV fitted with the correct power converter and external E/O output.

The light system is sold separately from the DPV. The power converter and E/O adapter/output are installation requirements and are not included with SLS2.

Features

Key features

7,200 lumens across two heads

Each compact lamp produces 3,600 lumens, giving a balanced pair of focused beams for the DPV setup.

Focused 14° beam

The narrow beam concentrates the available output ahead of the scooter rather than spreading it as a broad video light.

DPV and local control

Adjust brightness through the compatible DPV display, with an individual magnetic slide switch on each lamp.

Deep-rated compact construction

Anodised-aluminium light heads are rated to 300 m and remain compact at 52 mm long and 34 mm in diameter.

Highlights

Technical highlights

Integrated with the DPV power system

SLS2 runs from stabilised 12 V / 2.5 A power through the DPV’s converter and external E/O connection. There is no separate light canister or internal lamp battery.

A defined two-light package

The system includes two lamp heads joined by a Y-shaped E/O cable and two mounting screws. Converter and DPV-side E/O hardware remain separate.

Check the host DPV first

The intended Seacraft platform must have the compatible power converter and external E/O output. SLS2 is supported on suitable FUTURE and GHOST configurations; it is not listed for GO!.

Protected under load

Integrated thermal protection supports the high-output light heads, while local switches allow either lamp to be isolated as needed.

Specifications

SLS2 specifications

Light output
2 × 3,600 lm; 7,200 lm total
Power
2 × 30 W
Beam angle
14°
Colour temperature
5700 K
LED
2 × XHP70.2
Power supply
Stabilised 12 V / 2.5 A from compatible DPV system
Controls
DPV display brightness control; individual magnetic slide switches
Size
Each head 52 mm long × 34 mm diameter
Weight
Each head 132 g; approximately -70 g in water
Maximum depth
300 m; tested to 350 m

SLS2 depends on the host DPV for power and brightness control. Compatibility must be checked against the DPV’s installed power converter and E/O output before ordering.

Fulfilment

Shipping and availability

Special order. Usually 2–3 weeks.

Contact us before ordering if you need the system by a specific date.

Included

What is included

Two SLS2 anodised-aluminium light heads, a Y-shaped E/O connection cable and two mounting screws. The DPV power converter and external E/O adapter/output are not included and must already be installed or ordered separately as part of a compatible DPV configuration.

SLS2 is a compact way to integrate focused twin lighting into a suitable Seacraft DPV without adding a separate light battery. The host scooter must have the correct converter and E/O output, so confirm the installed configuration before ordering.

Product help

Frequently asked questions

What is included with SLS2?

The system includes two light heads connected by a Y-shaped E/O cable and two mounting screws. It does not include the DPV power converter or DPV-side E/O adapter/output.

Which Seacraft DPVs are compatible?

SLS2 requires a compatible Seacraft DPV with the correct power converter and external E/O output. It is supported on suitable FUTURE and GHOST configurations and is not listed for GO!. Contact us to confirm the installed setup.

Does SLS2 have its own battery?

No. The lights draw stabilised 12 V / 2.5 A power from the compatible DPV system through the E/O connection.

How are the lights controlled?

Brightness can be controlled through the compatible DPV display. Each lamp also has an individual magnetic slide switch for local on/off control.

Is installation required?

Yes. The host DPV needs the applicable power converter and external E/O output, and the two heads must be mounted correctly. Confirm the DPV configuration before ordering.

How long does special order take?

Special-order lead time is usually 2–3 weeks. Contact us before ordering if you have a fixed travel or project date.
